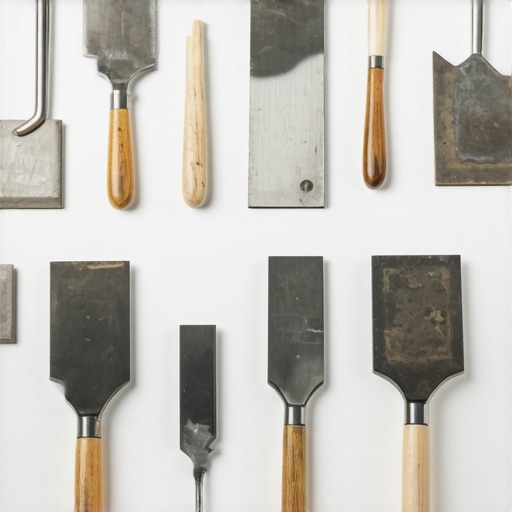

How to Choose the Right Trowel Notch Size for Your Tiles

Most guys skip the leveling compound. They think the underlayment will hide the dip. It won’t. I spent three days grinding concrete on a job last month just so the floor wouldn’t click like a castanet. That is the reality of a poor subfloor and the wrong tools. I have seen countless $20,000 tile jobs fail because the installer grabbed the first trowel they saw in their bucket. They did not think about the physics of the bond. They did not consider the chemistry of the thin-set. They just spread mud and hoped for the best. After 25 years on my knees with a moisture meter, I can tell you that hope is not a strategy. The trowel notch is the most misunderstood tool in the flooring world. It is not just a comb. It is a precision measuring device for the volume of adhesive your floor needs to survive decades of foot traffic and structural shifts.

The math of the notch

Choosing a trowel notch size involves calculating the final mortar bed thickness after the tile is embedded into the ridges. A notch size generally delivers a bed half as thick as the notch depth. For instance, a 1/4 inch square notch yields a 1/8 inch layer of mortar. This volume is essential for creating the mechanical bond required by the Tile Council of North America standards. When you pull a trowel across a substrate, you are creating air channels. When the tile is pressed into these ridges, the air is forced out and the mortar collapses into a flat, solid layer. If your notches are too small, there is not enough material to fill the gaps. This leads to hollow spots. If they are too large, you end up with thin-set oozing through the grout joints, which creates a nightmare for finishing. You must match the notch to the tile size and the flatness of your subfloor. Every 1/8 inch of deviation in the subfloor requires a larger notch to compensate for the dips.

V notch versus square notch dynamics

V-notch trowels are designed to deliver a thinner layer of mortar and are typically used for smaller tiles like mosaics or wall applications where weight is a factor. Square-notch trowels provide more mortar volume for larger tiles that require a thicker bed to achieve full coverage. The geometry of a V-notch means that when the ridge collapses, it spreads more thinly than a square ridge. This is perfect for small decorative tiles where you do not want thin-set to clog up the tiny grout lines. On the other hand, a U-notch trowel is the middle ground, often used for medium format tiles because it creates a ridge that is easier to collapse with less effort, reducing the physical strain on the installer. If you are working on showers with a style that involves intricate patterns, your trowel choice is what determines if those tiles stay level or start to dive into the mud. I always say that the trowel is the architect of the bond. If the architecture is weak, the building falls.

The science of large format tile coverage

Large format tiles require a minimum of 80 percent mortar coverage in dry areas and 95 percent in wet areas to ensure structural integrity and prevent cracking. Achieving this level of coverage with a standard trowel is nearly impossible without using a 1/2 inch notch and back-buttering. When a tile is 12×24 inches or larger, any tiny void underneath becomes a point of failure. If you step on a corner that has no mud under it, the tile will snap. I have replaced hundreds of cracked porcelain planks because the previous guy used a 1/4 inch notch. He thought he was saving money on thin-set. Instead, he cost the homeowner a whole new floor. Large format tiles also have a slight bow in them from the kiln firing process. A deeper notch provides the extra material needed to bridge the gap in the center of the tile. This is why a flat subfloor is non-negotiable. If your floor has a hump, no trowel in the world will save you from lippage. You can find out more about maintaining these surfaces in our guide on tile cleaning tips for a sparkling bathroom.

“A floor is only as good as the subfloor beneath it; deflection is the enemy of every joint.” – Master Flooring Axiom

Why back buttering is a professional requirement

Back-buttering is the process of applying a thin layer of mortar to the back of the tile before setting it into the troweled ridges on the floor. This ensures that the mortar wets out the tile surface completely, creating a chemical and mechanical bond. I never set a tile larger than 8×8 without back-buttering. It acts like a primer. If the back of the tile is dusty or has a release agent from the factory, the troweled ridges on the floor might not stick to it. By back-buttering, you are forcing the mortar into the microscopic pores of the tile. This is especially critical in high-moisture environments. If you are doing showers that wow, you cannot afford a bond failure. Water will find its way behind a loose tile and rot the wall studs before you even see the damage. It is a slow, invisible disaster. I have seen showers that looked beautiful on the outside but were essentially held together by hope and old grout because the installer skipped the back-buttering step.

• Check subfloor flatness with a 10-foot straight edge.
• Select a notch size based on the longest side of the tile.
• Always back-butter tiles larger than 8 inches.
• Comb the mortar in straight lines, not swirls, to let air escape.
• Collapse the ridges by moving the tile perpendicular to the lines.

The impact of subfloor deflection on trowel choice

Deflection refers to the amount a floor bends under a load and is a critical factor in tile longevity. If a subfloor has too much flex, the rigid tile and mortar will crack, regardless of the notch size used during installation. Wood joists move. Concrete stays relatively still. If you are installing over a plywood subfloor, you must ensure it meets the L/360 standard for ceramic and L/720 for natural stone. This means the floor should not deflect more than the span divided by 360 or 720. If you have a bouncy floor, using a larger trowel notch to add more mortar will not help. In fact, it might make it worse because a thicker bed of standard mortar is more brittle. You need a highly modified thin-set with polymers that can handle the micro-movements of the wood. This chemistry is what keeps the grout from crumbling. If your grout is already failing, you might need to look into grout restoration secrets to fix the aesthetic issues, but if the structural deflection is not addressed, the problem will return.

The hidden danger of air pockets

Air pockets trapped under a tile act as thermal insulators and structural weak points that lead to debonding and cracked tiles. Proper troweling technique focuses on creating parallel ridges that allow air to be pushed out as the tile is set. Most amateurs swirl their trowel like they are frosting a cake. This is a death sentence for a floor. Swirling creates closed loops of mortar that trap air. When you press the tile down, that air has nowhere to go. It stays there, creating a hollow sound when you walk on it. Eventually, the tile will pop loose. You must comb the mortar in one direction. When you set the tile, you push it into the ridges and then slide it a quarter inch back and forth. This collapses the ridges and creates a solid bed of mud. It is hard work. Your back will hurt. Your knees will ache. But that is how you build a floor that lasts 50 years. This level of detail is what separates a mechanic from a handyman.

“Proper mortar coverage ensures a mechanical bond that survives the movement of time.” – TCNA Handbook Wisdom

Finishing the system with baseboards and grout

A tile installation is not complete until the perimeter is handled correctly with expansion gaps and baseboards. These gaps allow the entire tile assembly to expand and contract with temperature changes without buckling or tenting. I see people butt the tile right up against the wall. That is a rookie mistake. You need a gap. That gap is then covered by baseboards makeover ideas that hide the expansion space while providing a clean finish. If the tile expands and hits the wall, it has nowhere to go but up. This is how you get tenting, where the tiles literally lift off the floor in a V-shape. Once the tile is set and the baseboards are in, the grout becomes the final seal. If you have old grout that looks terrible, you can learn how to refresh grout without replacing it to save the look of the room. But remember, grout is not structural. It is a filler. The strength comes from the thin-set bed created by that trowel notch. If you get the notch right, the rest of the job becomes much easier. The floor becomes a performance surface that can handle anything the family throws at it. Don’t cut corners on the subfloor or the trowel. Your future self will thank you when the floor is still solid as a rock two decades from now.
