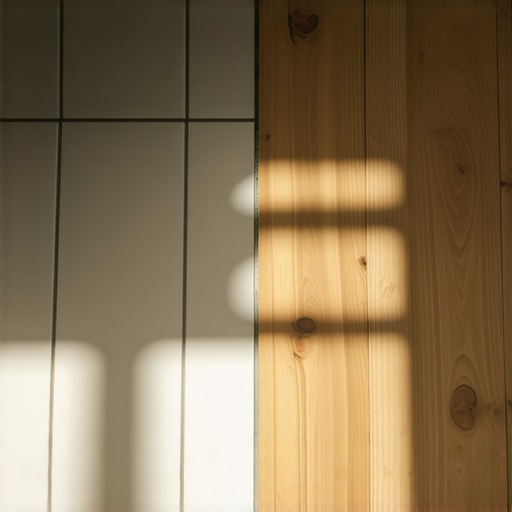

How to Transition Tile to Hardwood Without a Trip Hazard

Most guys skip the leveling compound. They think the underlayment will hide the dip. It won’t. I spent three days grinding concrete on a job last month just so the floor wouldn’t click like a castanet. I have been doing this for over twenty five years and the one thing I have learned is that the subfloor is the only thing that matters. If you get the subfloor wrong, the transition between your porcelain tile and your white oak will fail. I had a client last winter who insisted on skip prepping the transition from her porcelain tile entry to the white oak living room. Six weeks later, the tongue of the first hardwood board snapped because of a 3/16 inch void in the substrate. That is why I do not cut corners. I smell like sawdust and floor wax because I spend my life on my knees making sure things are flat. I despise builder grade carpet and I have no patience for people who think a transition strip is just a piece of plastic you glue down. It is a structural engineering requirement. If you want a floor that lasts for decades, you have to respect the physics of the materials.

Why your subfloor is lying to you

Subfloor leveling, self-leveling compound, and concrete grinding are mandatory for achieving a flat substrate before installing tile and hardwood. If the subfloor deflection exceeds L/360, the transition point will become a trip hazard due to vertical movement and structural plank failure in the floor assembly. I always start with a ten foot straightedge. If I see a gap larger than 1/8 of an inch, I am not pulling out the flooring. I am pulling out the diamond cup wheel grinder. You have to remove the high spots before you ever think about the low spots. People often try to dump bags of self leveler over a hump, but all you do is create a bigger mountain. Grinding concrete is a dirty, dusty job, but it is the only way to ensure that your tile meets your wood at the exact same elevation. Most installers will tell you that the underlayment will take up the slack. They are lying. Any movement in the subfloor translates directly to the joint. If you are working in a bathroom or near showers with a style, moisture levels in the subfloor can also cause the material to shift, leading to a permanent height difference that will catch a toe every single time.

The hidden physics of height differentials

Material thickness, thin-set depth, and underlayment height determine the final elevation of your flooring transition. Balancing 3/4 inch solid hardwood with 3/8 inch porcelain tile requires structural planning to ensure a flush finish that eliminates trip hazards and allows for uninterrupted foot traffic across different living spaces. Let us look at the math. A standard solid hardwood plank is 3/4 of an inch thick. Your average tile is 3/8 of an inch thick. If you just slap them down, you have a 3/8 inch cliff. You have to build up the tile side using a specific cementitious backer board or a heavy layer of modified thin-set. However, you cannot just pile up mortar. Too much thin-set leads to shrinkage. As the water evaporates from the Portland cement mixture, the mortar pulls the tile down. If you do not account for that 1/32 of an inch of shrinkage, your flush transition becomes a lip. I prefer using a 1/2 inch backer board over a 3/4 inch plywood subfloor to give the tile the height it needs to compete with the oak. This is where the chemistry of the bond comes into play. You need a highly modified thin-set with a high polymer content to ensure the tile stays put under the stress of the transition.

“A floor is only as good as the subfloor beneath it; deflection is the enemy of every joint.” – Master Flooring Axiom

The ghost in the expansion gap

Hardwood expansion gaps, perimeter spacing, and silicone caulking allow for natural wood movement without creating trip hazards. A proper transition requires a 1/2 inch gap to accommodate seasonal humidity changes, preventing the hardwood boards from buckling against the rigid tile edges or thresholds in the home. Wood is a living material. It breathes. When the humidity hits eighty percent in the summer, those oak planks are going to grow. If you have them tight against a rigid porcelain tile, something has to give. Usually, it is the wood. It will crown or buckle, lifting up and creating a dangerous edge. I always leave a half inch gap and fill it with a color matched 100 percent silicone caulk rather than hard grout. Grout has zero flexibility. If the wood moves, the grout cracks and falls out, leaving a hole that catches dirt and high heels. If you are worried about the look, you can learn how to refresh grout without replacing it to keep the rest of the floor looking sharp, but at the transition, flexibility is king. Do not let a salesperson talk you into a cheap T-molding. Those things are trip hazards waiting to happen because they sit on top of the floor. A true professional wants a flush transition where you can roll a marble across the joint without it jumping.

Choosing between flush mounts and reducer strips

Flush mount transitions, Schluter profiles, and wood reducers provide the structural bridge between different floor heights. Selecting the right hardware ensures durability and safety while maintaining the aesthetic integrity of the interior design and preventing long-term wear at the material junction. If you absolutely cannot get the heights to match, you have to use a reducer. But not just any reducer. You want a solid wood reducer that is scribed to the subfloor. I hate the metal strips you find at the big box stores. They look cheap and they bend under heavy traffic. If I am doing a high end job, I use a Schluter RENO-U or RENO-T profile. These are engineered metal strips that protect the edge of the tile from chipping. Porcelain is strong on the face but brittle on the edge. If the wood is even a hair lower than the tile, the edge of that tile will eventually flake off. The profile takes the impact. For the wood side, I make sure the transition is located under the center of the door when it is closed. This is a rule most rookies forget. You do not want to see the bathroom tile when you are standing in the hardwood hallway with the door shut. It is about the geometry of the space. While you are at it, consider how chic baseboard designs that transform rooms in 2025 can hide the expansion gaps at the walls where the transition ends.

Technical Specifications for Flooring Transitions

The chemistry of a permanent bond

Adhesive selection, shear strength, and curing times are the foundation of a stable floor transition. Using modified thin-set for tile and urethane-based glue for hardwood prevents delamination and hollow spots that lead to cracked grout and tripping risks at the seam. I see guys using construction adhesive for floor transitions. That is a crime. Construction adhesive gets brittle. You need a urethane adhesive that remains slightly flexible after it cures. This allows the wood to expand and contract without breaking the bond to the subfloor. On the tile side, you want a mortar that meets ANSI A118.4 standards. This means it has enough polymer to grip the back of the tile and the substrate with enough force to resist the lateral pressure of someone walking over the edge. If you are doing grout restoration secrets for long lasting results, you know that the bond is everything. If the tile moves, the grout dies. I always back butter the tiles at the transition. This means I apply a thin layer of mortar to the back of the tile before setting it into the notched trowel bed. It ensures 100 percent coverage. Without 100 percent coverage, the edge of the tile is unsupported. One heavy step from a guy in work boots and that tile edge will snap like a cracker. That is how you get a trip hazard.

Integrating your walls and baseboards

Baseboard integration, shoe molding, and plinth blocks cover the essential expansion gaps where flooring meets the wall. Proper trim installation ensures that the transition looks intentional and professional while protecting the structural integrity of the hardwood and tile systems. You cannot just run the floor up to the wall and call it a day. The floor needs to slip under the baseboard. I always undercut my door jambs with a specialized saw so the wood and tile can slide underneath. This hides the gap and makes it look like the house was built around the floor. If you have gaps that are too wide, you might need to look into baseboards makeover ideas to elevate your space. A good shoe molding can also bridge the gap if the subfloor is slightly uneven. I prefer a taller baseboard because it gives me more room to play with. When the transition hits the wall, the baseboard should be notched to follow the profile of the transition strip. It is a detail that 90 percent of installers skip because it takes an extra twenty minutes with a coping saw. But it is the difference between a floor that looks like it belongs and a floor that looks like a DIY project gone wrong.

“Movement is inevitable; the goal of a transition is to manage that energy without structural failure.” – NWFA Technical Guidelines

Final thoughts on the lasting legacy of a level floor

The secret to a perfect transition is not in the wood or the tile. It is in the work you do before those materials even arrive at the job site. It is the three days of grinding concrete. It is the moisture testing of the slab. It is the precise calculation of the thin-set bed. If you take the time to get the subfloor flat and the heights aligned, the transition will be invisible to the foot and beautiful to the eye. Do not settle for plastic strips and do not ignore the expansion gaps. Your floor is a system, and like any system, it is only as strong as its weakest link. Take care of the tile with tile cleaning tips for a sparkling bathroom in 2025 and treat your hardwood with the respect a natural material deserves. If you do that, you will never have to worry about a trip hazard again.

Professional Transition Checklist

• Measure subfloor flatness with a 10 foot straightedge
• Grind high spots and fill low spots with self-leveler
• Calculate total stack height of tile plus thin-set
• Calculate total stack height of wood plus underlayment
• Leave 1/2 inch expansion gap for solid hardwood
• Use 100 percent silicone caulk at the joint instead of grout
• Undercut all door jambs for a clean finish
• Select a metal or wood profile to protect tile edges
